Power Packed In A Container

Cubeenergy From China Designed A Micro-Grid That Can Be Packed In A Container Exclusively Designed For Off-Grid Locations

Power Packed In A Container

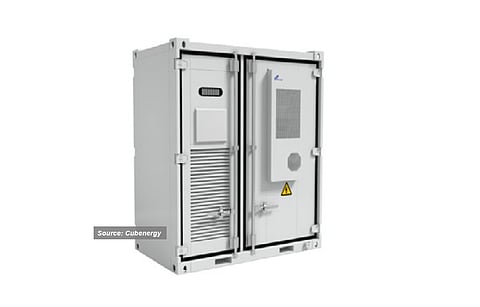

A compact microgrid: Cubenergy developed a compact 100 kW all-in-one microgrid that can fit into a single standard container. (Source: Cubeenergy)

  • Cubeenergy’s FelxCombo-M100 is an innovative energy storage solution from the company with a nominal battery capacity of 128/192 kWh having a power rating of 100 kW
  • The system comes as an all in one solution with battery strings, battery management system, inverters and fire control in a single container
  • The company claims that system can provide an uninterrupted power supply for 20,000 hours on an average

The FlexCombo-M100 from Chinese battery energy storage and microgrid provider Cubenergy was chosen as one of the Finalists for the EES AWARD 2022. The EES is the storage part of the Smarter E to which also the Intersolar show belongs.

With a nominal battery capacity of 128/192 kWh and a power rating of 100 kW, this intelligent all-in-one microgrid system is primarily designed for use in off-grid locations. All the components of the system, namely battery strings, battery management system (BMS), inverters, and fire control system are packed together in a single standard container, which eases the transport, installation, and maintenance. The solution comes with a big promise of outstanding reliability backed up by the modular design, global service centers and a mean time between failures (MTBF) of more than 20,000 hours.

According to Cubenergy, it is one of only a few microgrid ESS in the world to have passed the UL9540 certification test. The innovative product allows for seamless on/off grid switching with multiple energy access, such as photovoltaic / wind / diesel generators, and thus provides an optimal energy solution.

The text is an excerpt from TaiyangNews report on New Solar Products Overview 9M/2022, which can be downloaded for free here.
