1P Tracker for Larger Modules from Arctech

SkyLine II Tracker Based On Multipoint Drive Mechanism Designed To Accommodate High Power Large Modules

1P Tracker for Larger Modules from Arctech

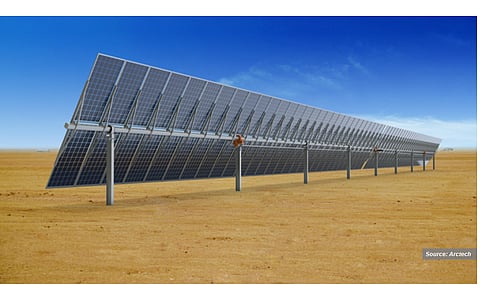

Synchronous connection: The SkySmart II from Arctech uses a synchronous multi-point slew drive with direct gearboxes, but equipped with one motor and controller which enable the SkySmart II models to be synchronously connected and driven by a transmission rod. (Source: Arctech)

  • SkyLine II tracker is an horizontal single axis tracker based on 1P architecture is designed to address common constrains of typical single axis trackers interms of stability by stowing at 0 degrees
  • The tracker uses pentagonal torque tube and synchronous multi-point driving mechanism
  •  The design with many fixed locations allows construction of  independent blocks that facilitates modularity which accommodate all panel sizes and string counts per tracker

Arctech from China, a leading tracking, racking and BIPV solutions provider, has launched its SkyLine II tracker solution during Intersolar. It is a 1P tracker that employs multipoint drive mechanism technology and has been specifically built to tag along the latest trend of larger module formats in pursuit of higher power ratings.

Arctech introduced SkyLine II, a rigid tracker system that addresses  the constraints of typical single-axis flexible trackers in terms of stability. It is a new-generation rigid  horizontal single-axis tracker with an independent row and 1P architecture, using a pentagonal  torque tube and synchronous multi-point driving mechanism. Unlike typical flexible trackers, which  rotate excessively during wind events and must be stowed at steep angles, the Skyline II safely stows at 0 degrees without torsional distortion.

The design allows the solar tracker to be as stable as possible at all tracking tilts. Furthermore, the unique design with many fixed locations provides independent “construction blocks,” allowing for the most versatile modularity to accommodate all panel sizes and string counts per tracker. Furthermore, Skyline II only activates wind stows at 22 m/s, resulting in up to 2% greater energy yield per year and a lower LCOE, according to the company.

For more information about solar trackers and Arctech solar Tracker solutions, please check TaiyangNews Market Survey on solar Trackers, which can can be downloaded for free here.

The text is an excerpt from TaiyangNews report on New Solar Products Overview 9M/2022, which can be downloaded for free here.
