Autel’s MaxiCharger DC HiPower Recognized For Innovation In EV Fast Charging Solutions

Key takeaways

• The MaxiCharger DC HiPower optimizes power with 96% efficiency and a modular design for easy maintenance

• With up to 8 simultaneous outputs and 950 V capacity, it’s ideal for fleet and high-demand EV charging

• Compatible with photovoltaic energy, it operates reliably in extreme temperatures and high altitudes

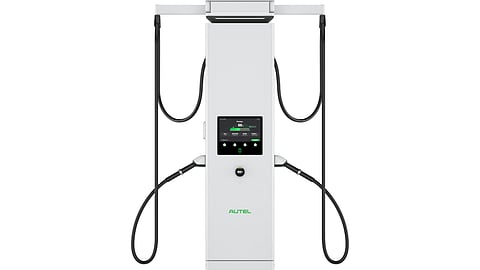

Autel, Germany's leading EV charging solutions provider, was a finalist for The smarter E AWARD 2024 in the E-Mobility category. The MaxiChargerDC HiPower from Autel Europe is a DC fast-charging system with a central power cabinet and remote dispensers. It comes in 2 versions, offering a maximum output of 480 kW and 640 kW, which can be increased in steps of 40 kW. The power cabinet supports up to 8 outputs for DC dispensers, and the liquid-cooled version provides up to 480 kW per output, delivering 400 km of range in just 10 minutes.

A patented matrix switching algorithm dynamically interconnects power modules to optimize power distribution and boost conversion efficiency to over 96%. The system is designed for integration with photovoltaic energy and EMS and offers integrated load management for a reliable power supply. Its compact design and preconfigured connectors simplify installation, while its modular design allows for easy maintenance, with power modules replaceable in 3 minutes.

The MaxiCharger DC HiPower can charge up to 8 vehicles simultaneously with a maximum output voltage of 950 V. It features an 8/15.6-inch LCD touchscreen and POS terminals for easy payment, making it suitable for fleet and bus charging. The system has an IP54 rating, operates at altitudes up to 3,000 meters, and functions within a temperature range of -35°C to +55°C. It is floor-standing with dimensions of 1,000 x 550 x 265 mm.
