“Cool” Charging Plug From Paxos For Heavy Vehicles

PaXos Cool-Load Megawatt (CLMW) Is A Patented Fast-Charging Connector Designed For Rapidly Charging Electric Vehicles And Other Heavy-Duty Applications

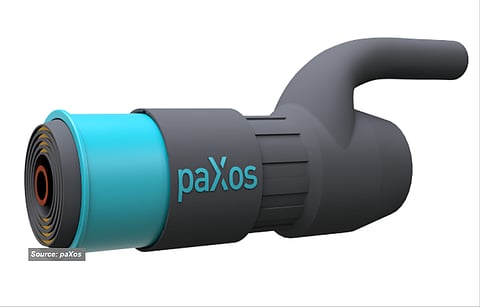

Living up to its name: The Cool-Load Megawatt charging plug from paXos comes with active cooling to charge heavy vehicles in megawatt scale. (source: paXos)
Living up to its name: The Cool-Load Megawatt charging plug from paXos comes with active cooling to charge heavy vehicles in megawatt scale. (source: paXos)
Published on
  • The Cool-Load Megawatt (CLMW) from paXos can deliver up to 12 MW of power at an 99.78% efficiency
  • CLMW's performance lies in its ring-shaped radial connection between the plug and the socket, which ensures minimal contact resistance and facilitates direct cooling
  • This results in substantial energy savings, allows the plug to endure up to 100,000 charging cycles, and enables a sleek and compact design with scalability to an impressive 40 MW in the future

paXos Consulting & Engineering, based in Cologne, Germany, has developed an innovative charging plug, the Cool-Load Megawatt (CLMW), which has earned it the Power2Drive AWARD. This patented fast-charging connector is a standout in the market, capable of delivering up to 12 MW of power at an impressive 99.78% efficiency, making it the perfect choice for rapidly charging EVs like trucks, buses, construction equipment, as well as heavy-duty marine and aviation applications.

The key to CLMW's performance lies in its ringshaped radial connection between the plug and the socket, which ensures minimal contact resistance and facilitates direct cooling. This not only results in substantial energy savings but also allows the plug to endure up to 100,000 charging cycles. Moreover, the sleek and compact design of the CLMW provides scalability, making it possible to increase its capacity to an impressive 40 MW in the future.

With its large contact area, the plug's unique ring structure enables low contact resistance, while offering direct cooling of the contact rings. The charging cable's high flexibility, coupled with the plug's effortless insertion into the charging socket at any angle and without force, further enhances its user-friendliness. By delivering outstanding efficiency, the CLMW not only saves energy and reduces cooling costs but also leads to shorter charging times, making it an enticing technology for various industries, including commercial vehicles, marine, mining, and aerospace sectors.

The text is an excerpt from TaiyangNews New Solar Products Overview H1/2023, which can be downloaded for free here.
