Broad Range Of Encapsulants From HANGZHOU FIRST

TaiyangNews Backsheets and Encapsulation survey features 9 EVA films from HANGZHOU FIRST, including both fast-cure and superfast-cure variants

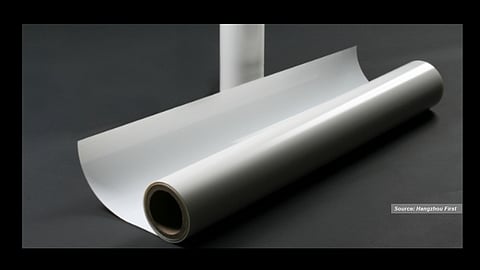

Snail-trail resistance: F406PS and F806PS feature unique "PS" properties, addressing snail-trail issues and offering flexibility in UV cut-off options. (Source: Hangzhou First)
Snail-trail resistance: F406PS and F806PS feature unique "PS" properties, addressing snail-trail issues and offering flexibility in UV cut-off options. (Source: Hangzhou First)
Published on
Key Takeaways
  • HANGZHOU FIRST’s F806W white EVA, designed for the rear side, boosts light utilization by reflecting unabsorbed light between cells, with 90% reflectivity in the 400–1,100 nm range.

  • F406PS and F806PS include resistance to snail-trail formation, addressing long-term visual and performance degradation in harsh environments.

  • The products from HANGZHOU FIRST differ by UV cut-off at 360 nm vs. full transmission, offering application-specific light management

The latest TaiyangNews Backsheets and Encapsulation Market Survey 2024 / 25 features product specifications from 17 companies, out of which 14 companies provided data for encapsulation materials. We have data for 9 products from HANGZHOU FIRST, the market leader in the encapsulation segment. All the products carried over from the last survey remain unaltered. The company lists 2 products in this EVA segment – S406 and S806 – both launched in 2021. The major difference between the 2 products is that S406 is a thicker film with a standard thickness of 500 μm with no UV cutoff, while S806 has a UV cut-off at 360 nm with a standard thickness of 450 μm. The 2 models have a standard width of 1,118 mm but can be opted for in a range of 200 to 2,200 mm. The rest of the specs for these 2 products are the same, and they also match one or the other product the company listed last year.

Su406 and Su806, both launched in 2017, have a density of 0.95 to 0.96 g/cm3. This product pair represents the company’s ‘superfast-cure’ range. That means the encapsulants support a faster cycle time in module manufacturing. While the recommended vacuum time during the lamination process with these 2 products is the same as that of fast-cure variants at 3 to 6 minutes, the press time is between 5 and 10 minutes, 1 to 5 minutes less than the fast-cure versions. These 2 models differ from each other in UV permeability; while the Su406 is totally UV transparent, the Su806 blocks light below 360 nm. The EVA sheets are rated with 12 Snail-trail resistance: F406PS and F806PS feature MPa tensile strength, while the rest of HANGZHOU FIRST’s EVA range is rated at 16 MPa (see Encapsulation Sector Balancing Innovation And Cost Pressures In Solar).

The remaining 5 listed products are part of the company’s fast-cure EVA range. Among these, the F806W model is somewhat distinctive in its application. Launched in 2015, it is a white EVA designed specifically for the rear side of the module. It helps reflect the sunlight that falls on the inter-cell spacing, giving it a second chance to get absorbed. It has a rated reflectivity of 90%, referring to a wavelength band of 400 to 1,100 nm. F806W comes with a standard thickness of 450 μm and 980 mm in width. It has an elongation of 400% in both the MD and TD directions and shrinkages of 5% and 2%, respectively. It has a glass adhesion strength of 60 N/cm and 40 N/cm for backsheets. The processing conditions are apparently the same as the other fast-cure products, as the EVA covering the rear of the module has to be co-processed with the one on the front side, as is the case with all of the ‘fast-cure’ models. The product is specially designed to avoid any overflow of white pigment to the front side during the lamination process.

Introduced in 2014, F406PS and F806PS are another pair of specialty products from HANGZHOU FIRST. The “PS” suffix denotes snail-trail resistance, while the differentiating factor among these 2 is the standard thickness and UV cut-off. While F406PS is supplied in a standard thickness of 500 μm and has no UV cut-off, F806PS is offered at 450 μm and stops sunlight below 360 nm from entering the module. These 2 EVA products are rated with an elongation of 450% in both TD and MD directions with respective shrinkages of 3% and 1.5%. These EVA films exhibit a > 60 N/cm glass adhesion strength and > 40 N/cm to backsheets. They also have the same chemical properties – a vinyl acetate content of 28% and 75% gel content. The specifications for mechanical and chemical properties are also the same for the company's entire product range, except for F806W. F406PS and F806PS are fast-cure versions that support similar processing conditions – a lamination temperature between 140 and 160°C, requiring a vacuum time of 3 to 6 minutes and a press time of 6 to 12 minutes (see Optimizing Encapsulation For Next-Gen Solar Modules).

Another pair of products launched in 2013, F406P and F806P, also have the same vacuum time but require a slightly higher press time of 6 to 14 minutes. The main difference between these 2 models is their UV transmittance. While F406P comes with no UV cut-off, F806P filters out light below the 360 nm wavelength. The standard thickness is also different. While the F406P has a rated thickness of 500 μm, F806P is supplied with a thickness of 450 μm. The width for both models is 980 mm, while the remaining parameters are identical. HANGZHOU FIRST’s entire range of EVA films is PID-resistant. And with the exception of white EVA, they all have identical performance attributes. The remaining 8 models are rated with a light transmittance of 91% in a wavelength band of 380 to 1,100 nm, a refractive index between 1.48 and 1.49, a volume resistivity of 1 × 1014 Ω cm, and a water absorption rate of 0.1%.

TaiyangNews Annual Flagship Conference – High-Efficiency Solar Technologies 2024 – Bo Jin, Overseas Sales Manager at HANGZHOU FIRST, provided an insightful overview of the company's comprehensive encapsulation solutions for BC modules (see the presentation here).

For detailed information on HANGZHOU FIRST’s offerings, please refer to the product description section of the report, which outlines specifications for all EVA-based materials.

The text is an excerpt from the latest TaiyangNews Market Survey on Backsheets & Encapsulation Materials 2024/25, which can be downloaded for free here.
