Sunchaser Structures introduces the Airavat 1P tracker with bifacial support and 140-module row length
The system is designed for durability, with corrosion-resistant materials and wind tolerance up to 180 km/h
The company provides a 15-year structural warranty and a 5-year warranty for motor and electronics
The 4th TaiyangNews Market Survey on Solar Trackers features 32 products from 17 suppliers. A total of 6 companies are featured for the first time.
India-based Sunchaser Structures, one of the 6 new entrants, has provided data for its single-axis tracker Airavat, introduced in 2021 and manufactured at its fully in-house facility. The tracker supports bifacial operation and accommodates a typical row length of 140 modules in a 1P configuration.
Airavat uses a wide mix of corrosion-resistant materials. It is based on structural elements, such as Magnelis, JSW Magsure, or PosMAC coatings for the columns and torque tube, while other components – including drive-tube bearings, purlins, and electrical enclosures – also feature protective surface treatments. The array height starts at 1.2 m and above, and it operates in a temperature range of -10°C to +70°C. It supports a GCR of 38%.
The tracker is designed to withstand high wind speeds of up to 180 km/h. It uses a 0° stow position for wind protection. The system adheres to C5 corrosion-protection standards and uses Sigma and CEE foundation profiles. The self-powered DC tracker draws power from the PV string and is compatible with string voltages ranging from 1,000 to 1,500 V DC. Tracking motion is driven by a linear actuator paired with a geared DC motor, offering ±2° precision and ±60° tacking range.
The design includes an 80 mm gap between the module and the torque tube, supporting enhanced rear-side irradiance capture. The control system features Astronomical Almanac (AA)-based tracking, backtracking capability, and sensors for wind, inclination, and temperature. The tracker uses LoRa-based wireless communication for control and monitoring and supports automated nighttime stowing. The Airavat tracker supports system monitoring and is compatible with robotic module-cleaning systems.

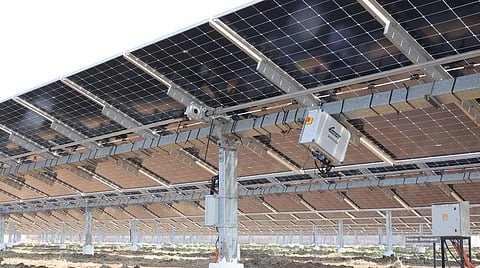

The tracker is IEC 62817 certified. Sunchaser provides a 15-year structural warranty and a 5-year warranty for the motor and electronics. The company says it begins delivery in around 2 weeks and completes dispatch in 2 months. It highlights features such as the multi-drive mechanism, scalability from 1 MWp to over 100 MWp, with distribution across India and Africa.
The text is an edited excerpt from TaiyangNews’ Market Survey on Solar Trackers 2026, which can be downloaded for free here.
